CovertEye RF
Covert Remote Wireless Surveillance
Designed to provide efficient surveillance in remote locations without infrastructure. Wireless cameras transmit high-resolution images to a central base station over long-range RF, no cellular coverage required.
Long Range. No Infrastructure.
CovertEye RF covers remote sites where cellular signal doesn't reach.
From Detection to Verified Alert
How CovertEye RF cameras and the OutWatch AI platform turn a motion trigger into a verified, actionable alert.

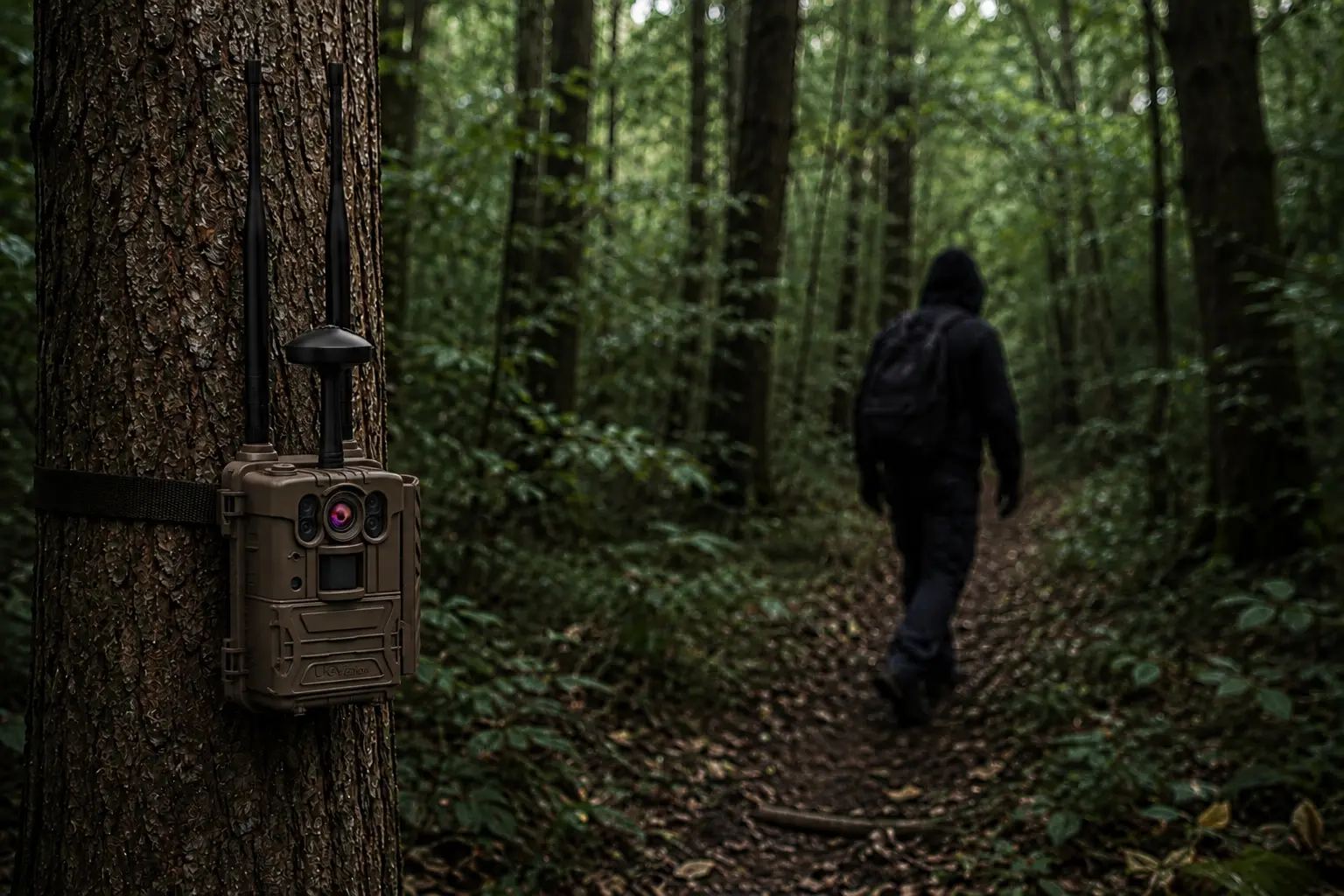

Detection
CovertEye RF wireless cameras capture a high-resolution image upon intrusion detection, using advanced PIR sensors for reliable motion detection.

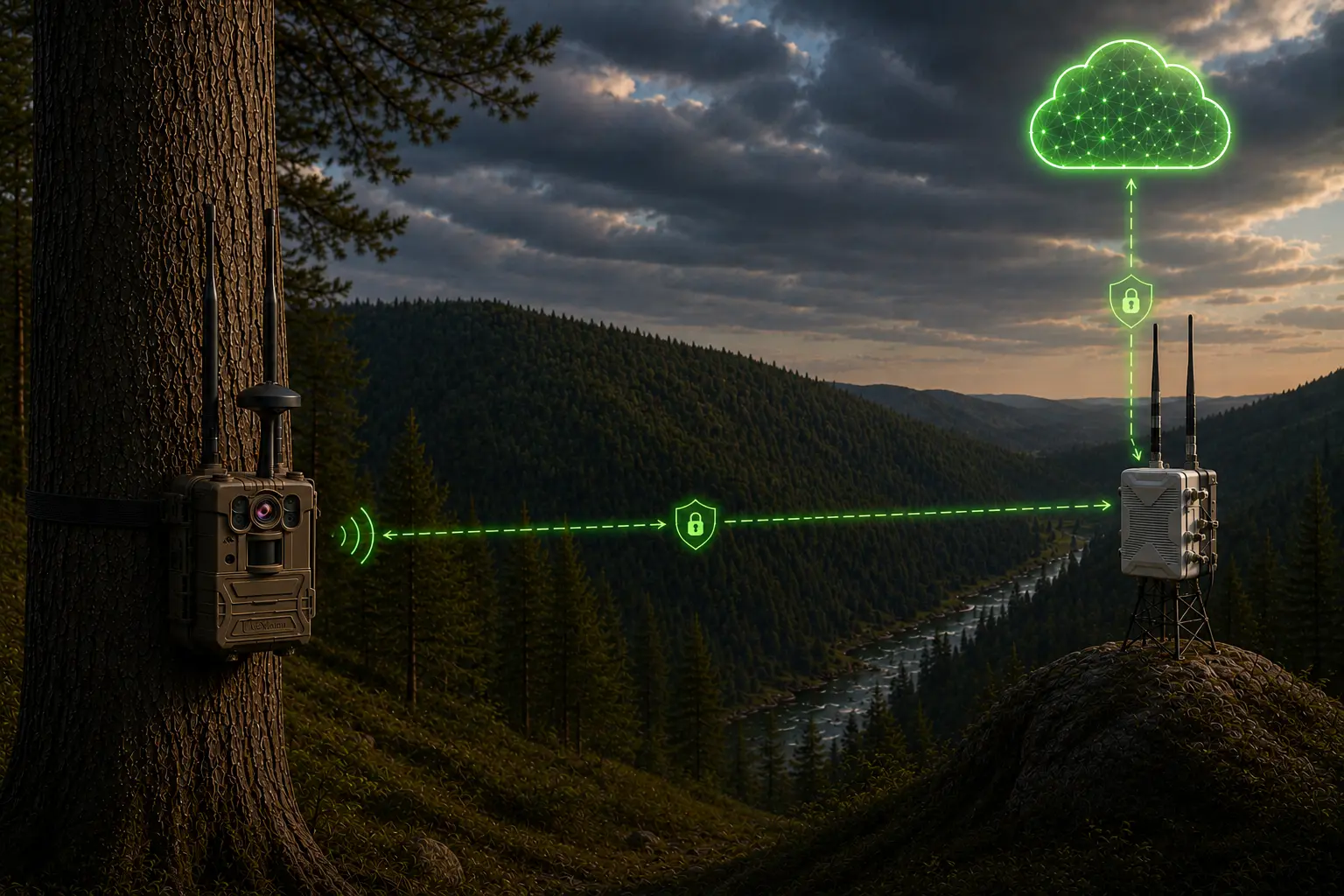

Transmission
Images transmit to the base station via long-range 2.4GHz RF technology, up to 5km in open terrain or 1–3km in wooded areas.

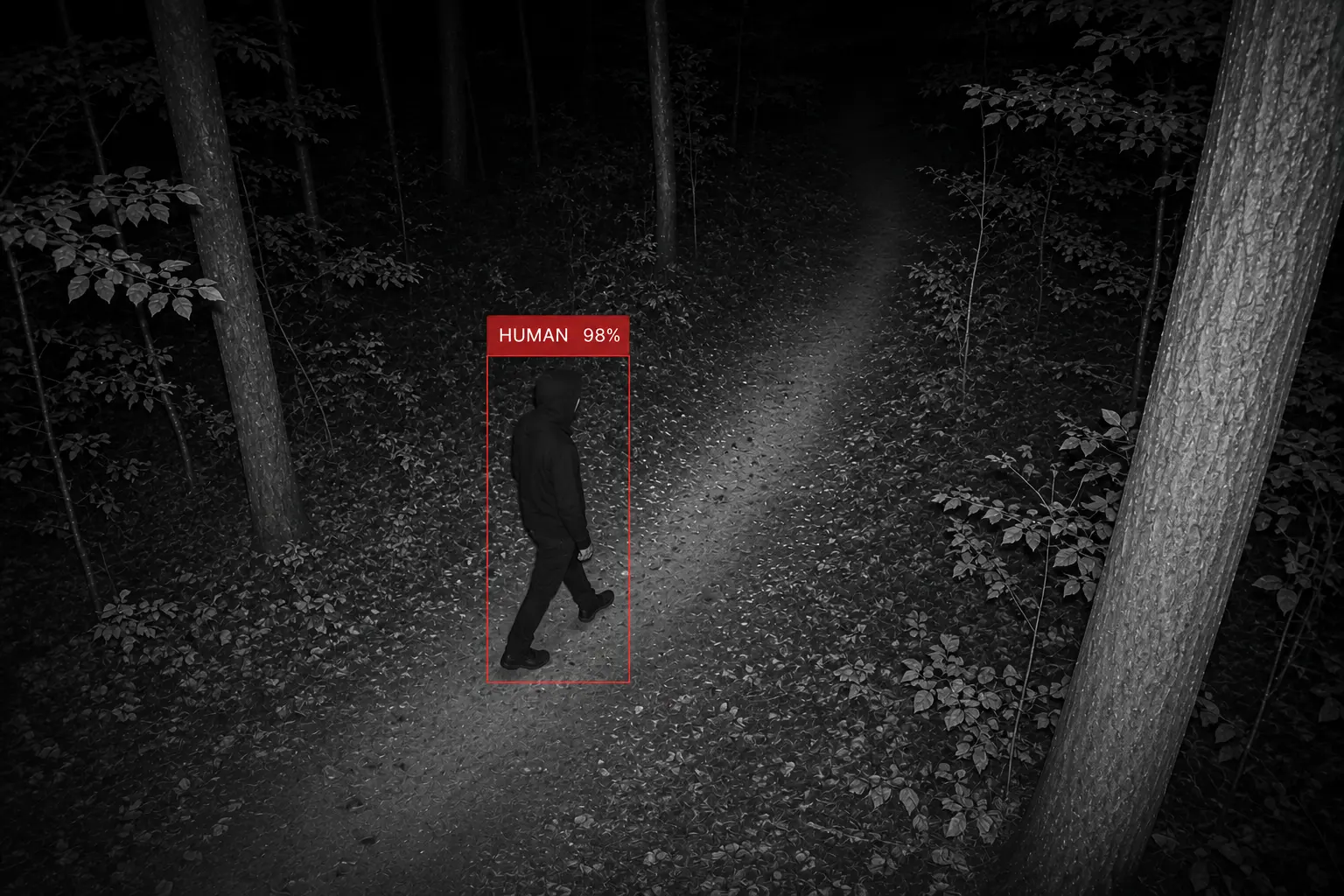

Verification
Alarm images are analyzed by the OutWatch object detection engine, automatically reducing nuisance alarms before anything reaches your team.

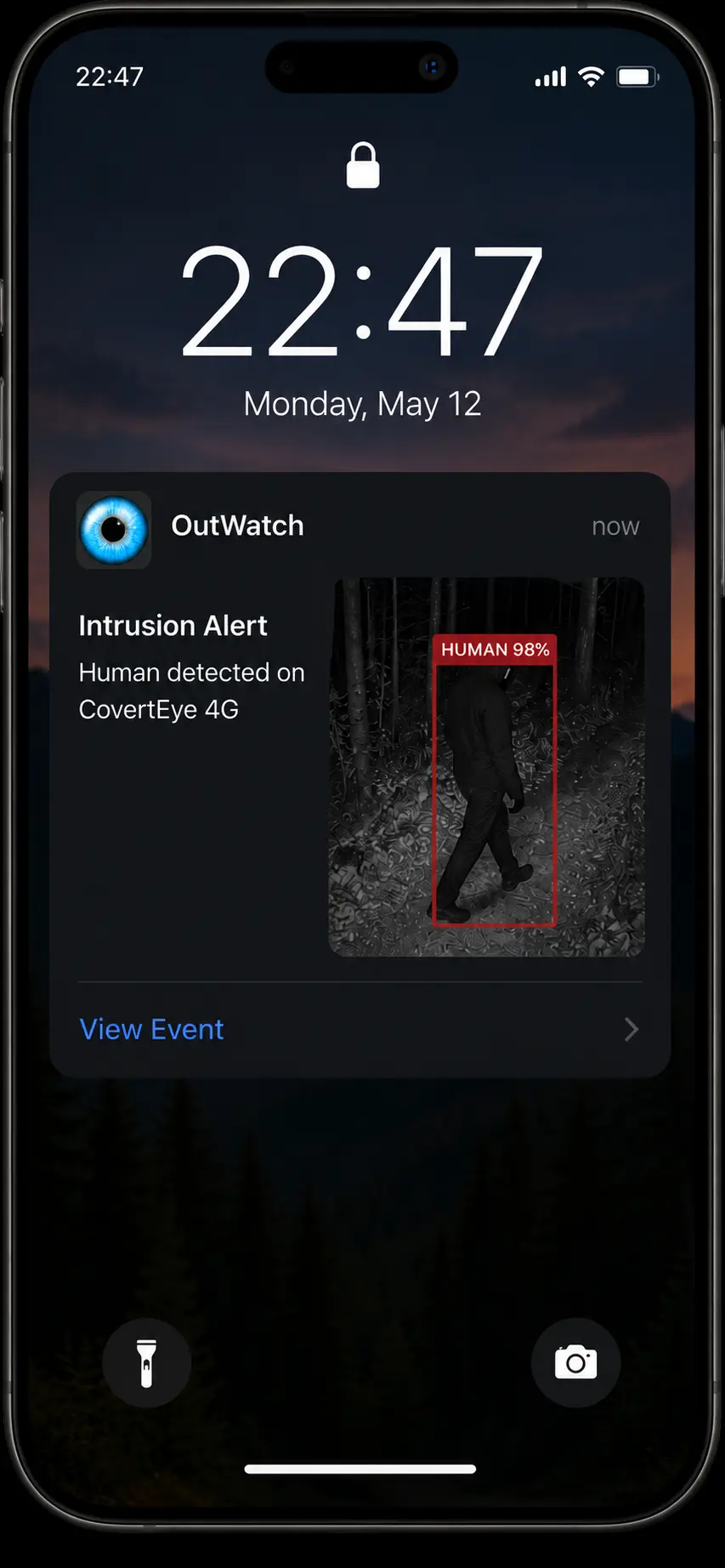

Alert
The base station connects to local CCS-OnSite Command & Control software or cloud management, delivering real-time alerts to your team.
Ideal For
CovertEye RF deploys wherever cellular coverage falls short.
Military & Tactical

Border Security

Construction Sites

Wildlife Protection

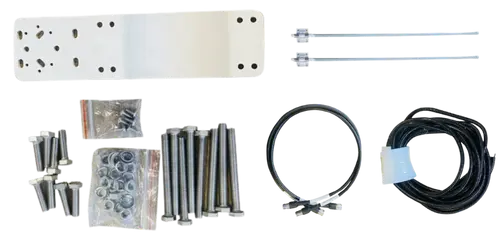

What's in the Kit
The standard CovertEye RF kit ships ready to deploy.



Technical Details
Full specifications for every component in the CovertEye RF kit.

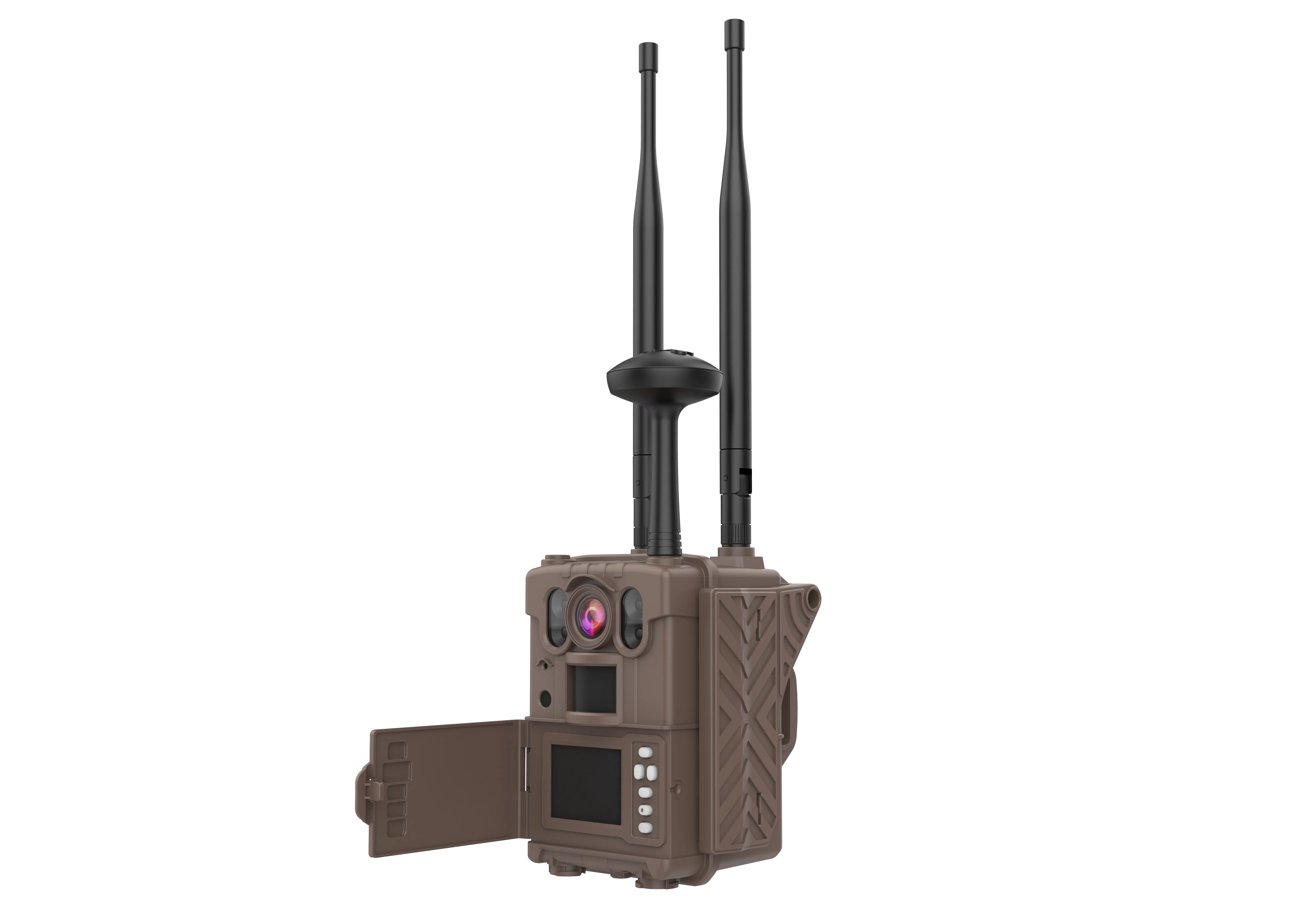

Camera
| Image Resolution | Up to 32MP |
| Video Resolution | Up to 3K (2560 x 1920) |
| Focal Length | f/1.6 |
| Field of View | 110° |
| IR Lights | 940nm |
| PIR Sensitivity | High / Normal / Low (adjustable) |
| Maximum Detection Range | 25m / 82ft |
Communication
| RF Frequency | 2.4GHz |
| Antennas | 2x 2.4GHz omni-directional antennas, 1x GPS antenna |
| Trigger Speed | Less than 1 second |
| Encryption | AES-256 |
| Built-in GPS | Yes |
Environmental & Power
| IP Rating | IP67 |
| Operating Temperature | -40°C to 80°C / -40°F to 176°F |
| Battery Life | 2 months |
| Power Consumption | ~0.2mA (standby) |
| Battery Voltage | 12V, 7.5Ah |
Physical Specifications
| Dimensions | 140mm x 105mm x 90mm / 5.5″ x 4.1″ x 3.5″ |
| Weight (incl. battery) | 1000g / 2.2lbs |
Communication
| RF Frequency | 2.4GHz |
| Wireless Encryption | AES-256 |
| Max Cameras | Up to 16 RF cameras |
| Transmission Range | Line-of-sight up to 5km; mountain/forest 1–3km |

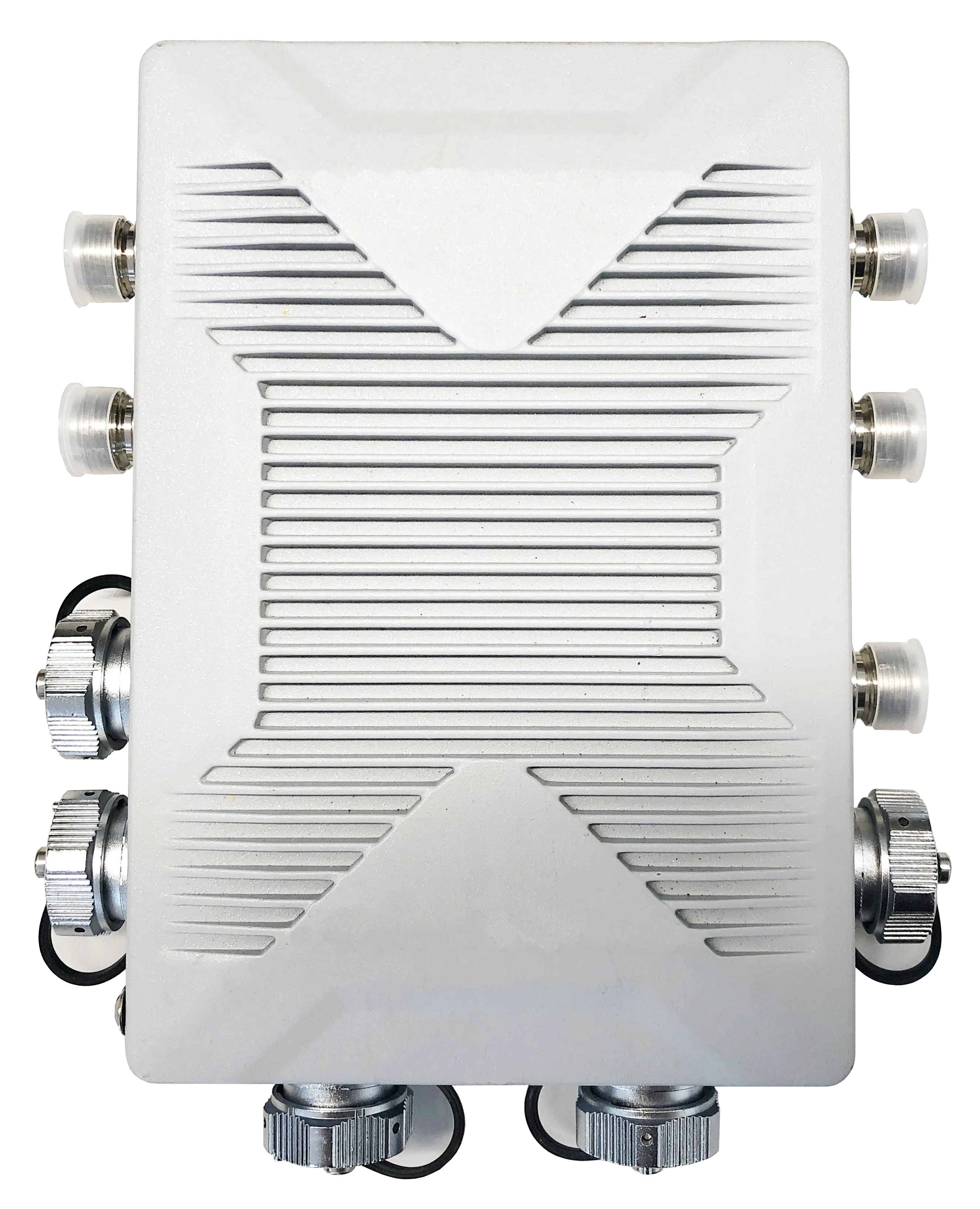

Hardware
| IP Rating | IP67 |
| Antenna | 2x high-gain 2.4GHz omni-directional antennas |
| Storage Space | 256GB |
| Power Supply | 6–18V |
| Current Consumption | 150mA @ 12Vdc |
| Dimensions | 55mm x 180mm x 220mm / 2.1″ x 7″ x 8.6″ |
| Weight | 1.5kg / 3.3lbs |
Environmental & Power
| Max Humidity | 98% |
| Operating Temperature | -40°C to 80°C / -40°F to 176°F |
Specifications
| RF Frequency | 2.4–2.5GHz |
| Type | Omni antenna |
| Bandwidth | 100MHz |
| Gain | 12dBi |
| VSWR | ≤1.5 |
| Maximum Power | 100W |
Physical
| Length | 1.2m |
| Weight | 1kg |
| Connector Type | N-Type (female) |
Design Your Site in Minutes
Search your address, place CovertEye cameras on a satellite map, aim each one, and get an estimated parts list for your site.
- Find your siteSearch any address and switch between satellite and terrain views.
- Lay out the systemPlace 4G or RF cameras, aim them, and add base stations for RF cameras.
- Get your parts listSend it to us for a quote and download it as a PDF.
Secure Any Location
Deploy CovertEye RF where cellular coverage falls short
Frequently Asked Questions
Have questions about CovertEye RF? Browse through our frequently asked questions to learn more about range, capacity, and deployment.
How far can CovertEye RF transmit?
Up to 5km in open terrain, or 1–3km in wooded areas, over 2.4GHz RF to the base station.

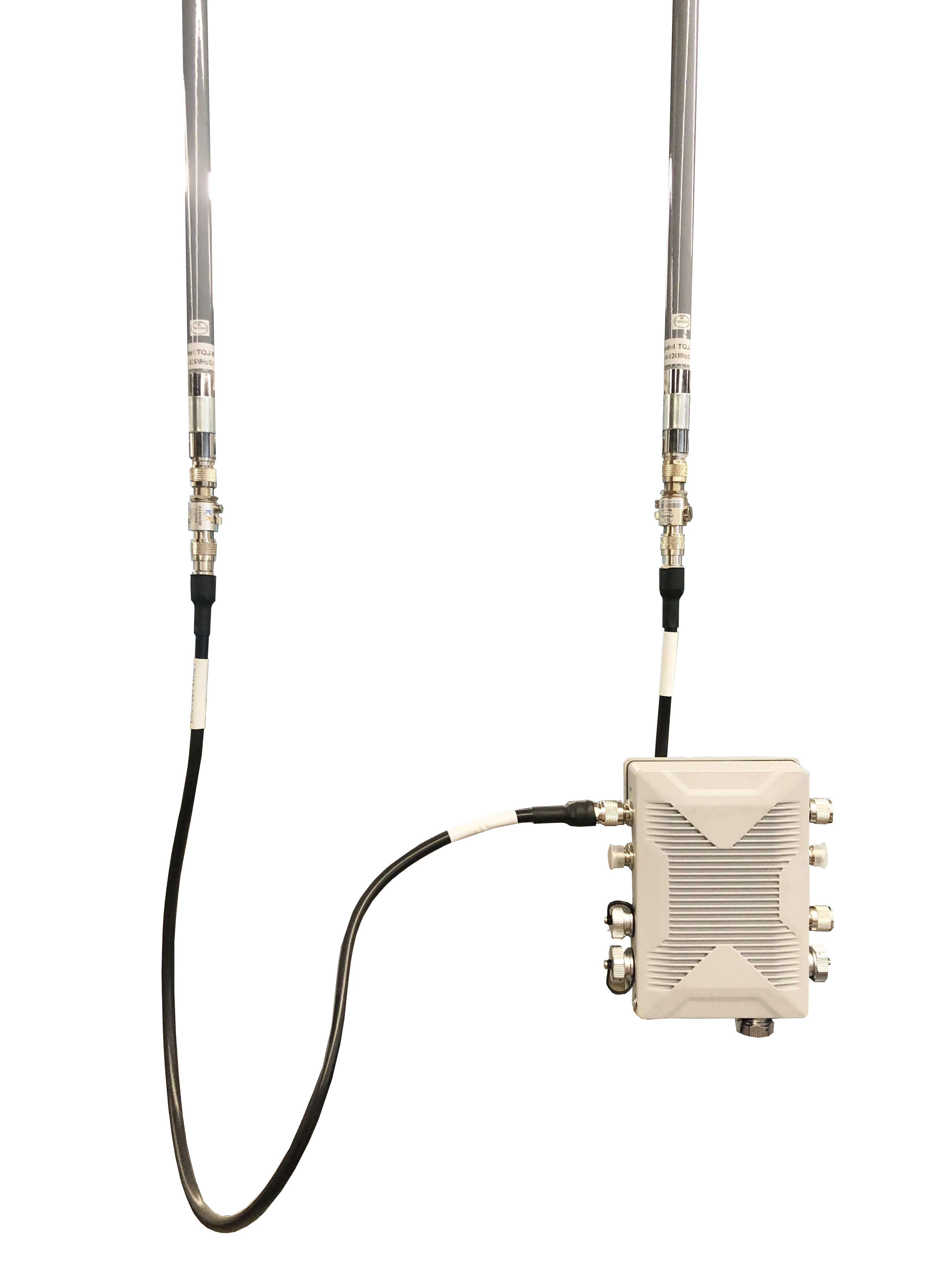

How many cameras can one base station support?
Up to 16 cameras per base station.
What's included in the standard kit?
2x wireless cameras, 1x base station, and accessories.
Can I monitor CovertEye RF without an internet connection?

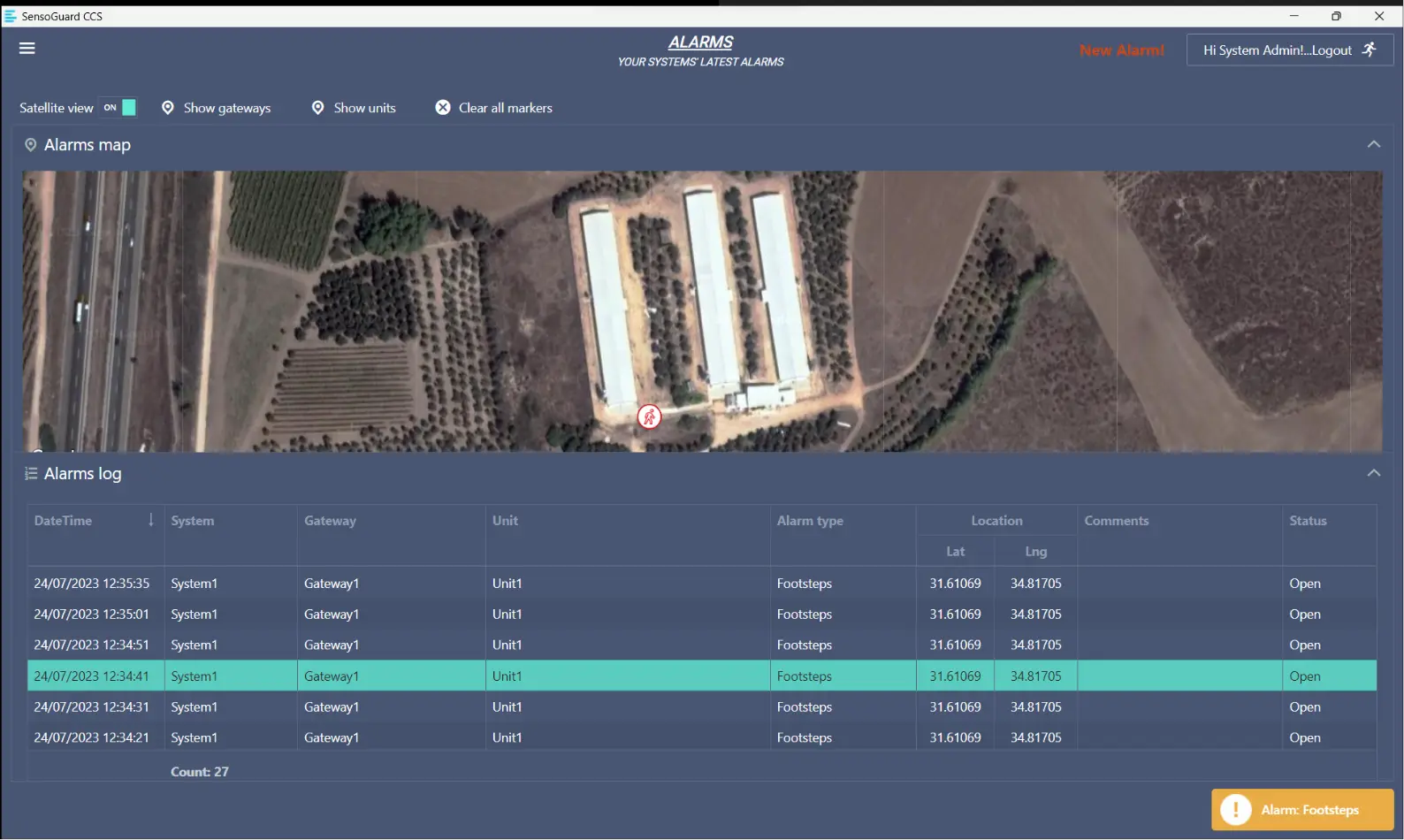

Yes. CCS-OnSite Command & Control Software provides local, on-premise control room operation alongside cloud-based monitoring through OutWatch.
When should I choose CovertEye RF instead of a 4G camera?
Choose CovertEye RF for sites with limited or no cellular coverage, it transmits directly to a local base station instead of relying on the cellular network.
How does OutWatch reduce false alarms?

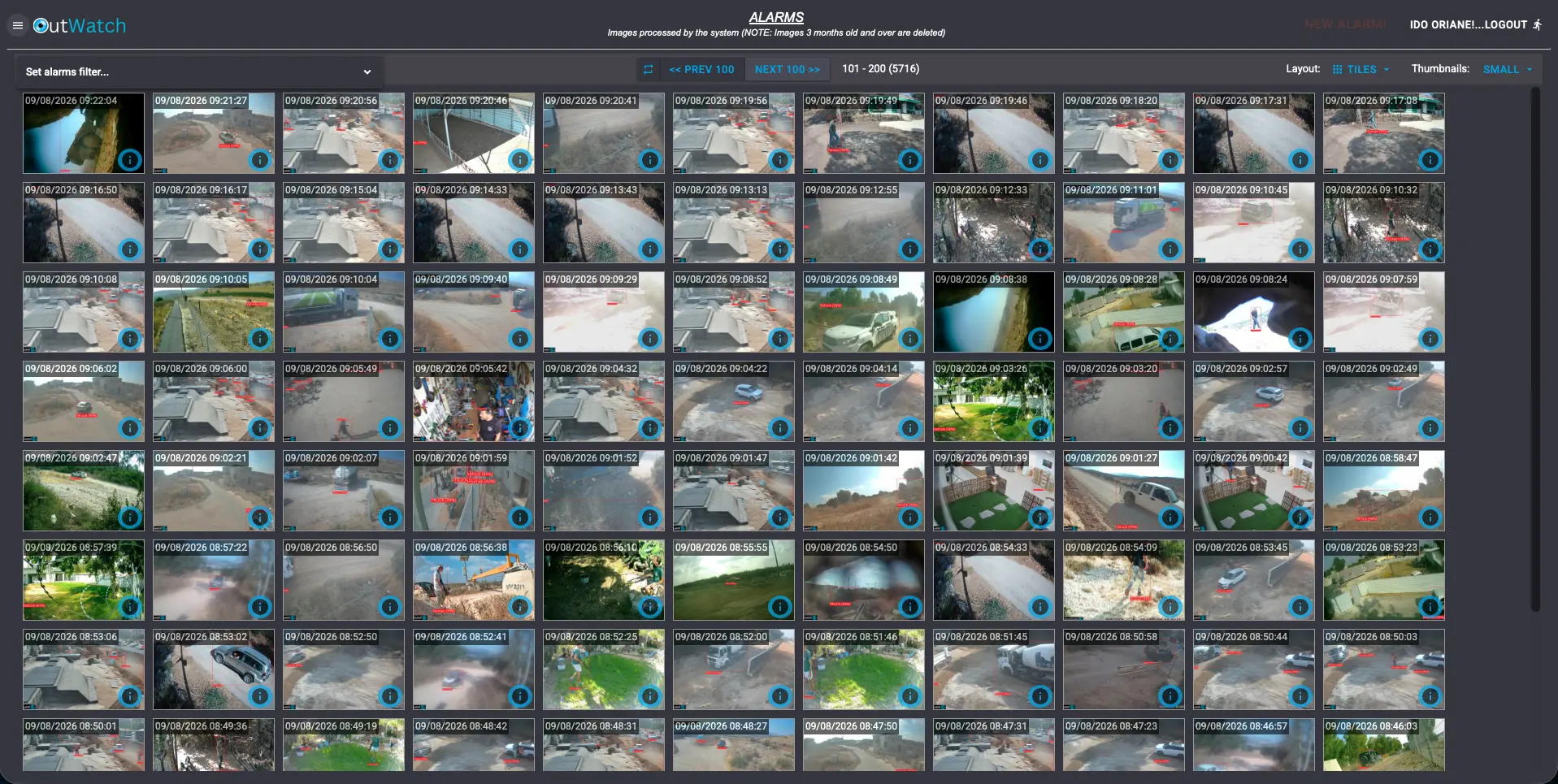

OutWatch's object detection engine analyzes every alarm image, automatically reducing nuisance alarms before a verified alert reaches your team.
See CovertEye RF in Action
Watch how CovertEye RF delivers covert surveillance without cellular or internet connectivity.
