UGS Sensors & Receivers
Wireless AIO (All-In-One) unattended ground sensors, in an open receiver architecture built for commercial and mobile-tactical applications.
The Widest UGS Range on the Market
Our wireless autonomous seismic sensors continuously monitor an area of interest for footsteps, vehicles, and digging activity, sending a wireless alert to a remote hub, PC, or handheld smartphone. The UGS system can be used with our wireless tactical kits, or as a trigger to a third-party system such as a CCTV camera or drone.
Our AIO Sensors
Three autonomous wireless seismic sensors, each built for a different deployment profile.
AIO 2.0
An autonomous wireless seismic sensor designed for mobile-tactical applications, with an internal rechargeable battery rated for up to 12 months of continuous operation.
AIO XR
An autonomous wireless seismic sensor designed for long-term installations of mission-critical applications (HLS, defense), with an internal non-rechargeable battery rated for up to 6 years of continuous operation.
AIO X
An autonomous wireless buried sensor designed for long-term installations of commercial applications such as residential security, with an internal non-rechargeable battery rated for up to 6 years of continuous operation.
Our Wireless Receivers
The widest range of receivers on the market, offering flexibility in system design for sites with or without power and communication infrastructure. SensoGuard's open system architecture keeps integration with third-party systems simple.

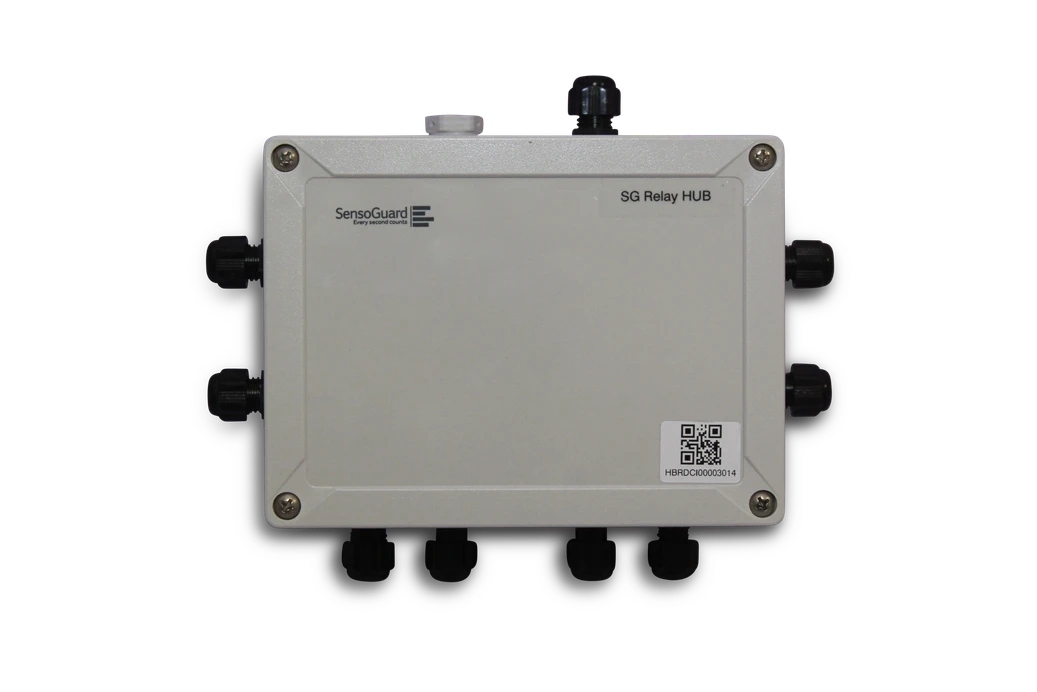

Dry Contact
18 dry contact outputs that connect easily to any standard alarm panel or third-party system, supporting up to 18 zones. Sensor-to-zone pairing is configured through PC Suite.
TCP/IP
A TCP/IP interface output, usually connected to a control room running SensoGuard CCS, which integrates with leading VMS software.
GSM
A GSM cellular interface output for sites without wired network infrastructure, connecting to SensoGuard CCS for control-room monitoring integrated with leading VMS software.

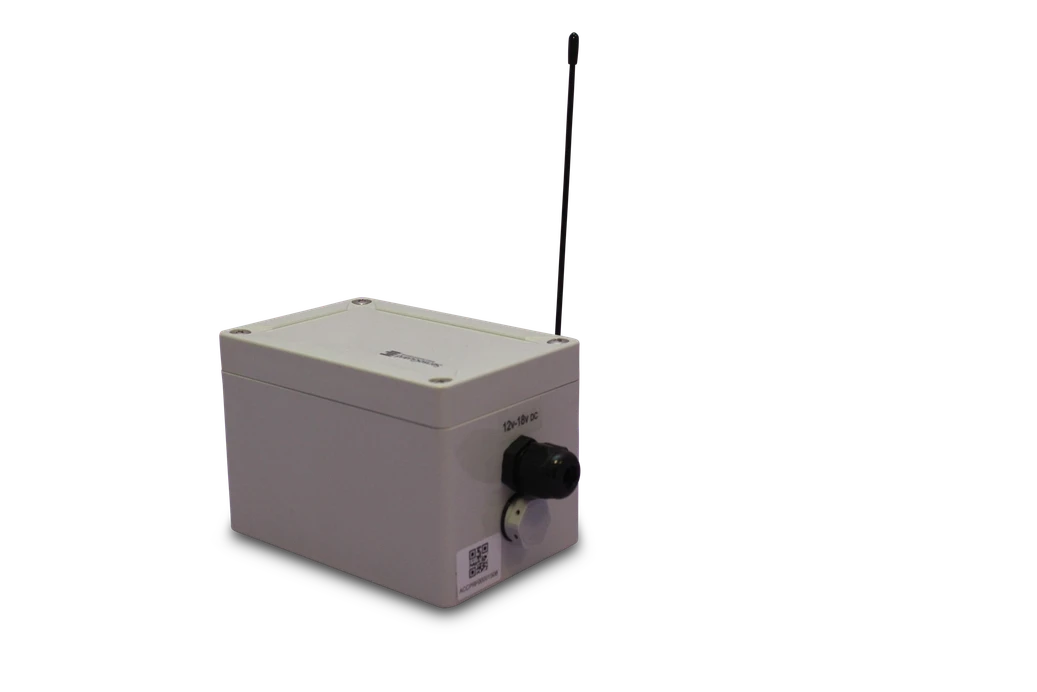

Satellite (Iridium)
An Iridium satellite interface output for remote sites without cellular or wired network coverage, connecting to SensoGuard CCS for control-room monitoring.
Smartphone
Pairs directly with the SG-Patrol Android app on a handheld smartphone, displaying sensor locations and alarm notifications on Google Maps for field teams without a fixed control room.
From Military to Civilian Usage
Our UGS system is developed by industry professionals with many years of experience in the defense industry. We've supplied our sensors to more than 25 countries for a wide range of applications, and offer the widest range of unattended ground sensors on the market, rather than the single one-size-fits-all model most companies sell.
Early Warning
The most important advantage of a UGS system is the element of surprise. Buried, completely hidden ground sensors with a long transmission range let you install sensors at tactical locations, providing an early warning or an additional layer of protection.
Smart Trigger to Security Cameras
Unattended ground sensors improve the ability of CCTV cameras, fixed or PTZ, by wirelessly triggering a remote camera only on events of interest, reducing the manpower needed to operate those cameras and enabling smarter upgrades to existing thermal or optical camera systems.
Main Features
SensoGuard's UGS sensors are extremely easy to deploy, designed to deliver reliable early detection for a wide range of security needs.
Cost Effective
Targeted for HLS and commercial applications.
Performance & Quality
Best-of-class performance, military-grade sensors.
User Friendly
Plug & play installation, maintenance-free.
Software
Configure, monitor, and control your UGS deployment with SensoGuard's software suite.
SG-Patrol App
An Android application for handheld receivers in the field. Requires a wireless smartphone receiver, and displays sensor locations and alarm notifications on Google Maps.
Learn more →CCS-OnSite
Command and control software for real-time control, monitoring, and management of intrusion events from a dedicated control room, integrating both wired and wireless systems.
Learn more →PC Suite
A user-friendly PC configuration utility for SensoGuard products, usable locally over USB or remotely from the hub unit.
Learn more →Use Cases
The same AIO sensors and receiver architecture adapt across SensoGuard's product line, wherever buried, invisible detection is needed.
Technical Details
Full specifications for every sensor and receiver in the UGS lineup.
Detection Capabilities
| Footsteps Detection | Up to 18m / 60ft radius |
| Vehicle Detection | Up to 35m / 115ft radius |
| Digging Detection | Up to 35m / 115ft radius |
| Detection Zone | 360° coverage |
Communication
| RF Frequency | 433MHz (Default), 868/915MHz (Optional) |
| Network Protocol | LoRa (Long Range) low-power wide-area network |
| Transmission Range (Antenna 2cm below ground) | Up to 250m / 820ft radius |
| Transmission Range (Antenna 5cm above ground) | Up to 1km / 3,280ft radius |
Environmental & Power
| IP Rating | IP68 (MIL-STD 810G) |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
| Battery Life | Up to 1 year (rechargeable) |
Physical Specifications
| Dimensions (Sensor) | 95mm x 70mm / 3.74″ x 2.7″ |
| Dimensions (Spike) | 75mm / 2.95″ |
| Weight | 500g / 1.1lbs |
| Installation Depth | 30-50cm / 11.8″-19.6″ |
Detection Capabilities
| Footsteps Detection | Up to 18m / 60ft radius |
| Vehicle Detection | Up to 35m / 115ft radius |
| Digging Detection | Up to 35m / 115ft radius |
| Detection Zone | 360° coverage |
Communication
| RF Frequency | 433MHz (Default), 868/915MHz (Optional) |
| Network Protocol | LoRa (Long Range) low-power wide-area network |
| Transmission Range (Antenna 2cm below ground) | Up to 250m / 820ft radius |
| Transmission Range (Antenna 5cm above ground) | Up to 1km / 3,280ft radius |
Environmental & Power
| IP Rating | IP68 (MIL-STD 810G) |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
| Battery Life | Non-rechargeable, 6 years |
| MTBF | 100,000 Hours |
Physical Specifications
| Dimensions (Sensor) | 103mm × 103mm × 150mm / 4″ × 4″ × 5.9″ |
| Dimensions (Spike) | 75mm / 2.95″ |
| Weight | 500g / 1.1lbs |
| Installation Depth | 30-50cm / 11.8″-19.6″ |
Detection Capabilities
| Footsteps Detection | Up to 12m / 39ft radius |
| Vehicle Detection | Up to 25m / 82ft radius |
| Digging Detection | Up to 25m / 82ft radius |
| Detection Zone | 360° coverage |
Communication
| RF Frequency | 433MHz (Default), 868/915MHz (Optional) |
| Network Protocol | LoRa (Long Range) low-power wide-area network |
| Transmission Range (Antenna 2cm below ground) | Up to 250m / 820ft radius |
| Transmission Range (Antenna 5cm above ground) | Up to 1km / 3,280ft radius |
Environmental & Power
| IP Rating | IP68 (MIL-STD 810G) |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
| Battery Life | Non-rechargeable, 6 years |
Physical Specifications
| Dimensions (Sensor) | 103mm × 103mm × 150mm / 4″ × 4″ × 5.9″ |
| Dimensions (Spike) | 75mm / 2.95″ |
| Weight | 500g / 1.1lbs |
| Installation Depth | 30-50cm / 11.8″-19.6″ |
Communication
| Communication Interfaces | Wireless RF, TCP/IP (with AI Bridge) |
| Maximum Sensors | Up to 30 sensors |
| Alarm Output Options | 18 Dry Contacts (18 Dry Contacts + TCP/IP with AI Bridge) |
| Camera/External Sensor Alarm Inputs | 6 alarm inputs |
Environmental & Power
| IP Rating | IP67 |
| Power Supply | 12V (9 to 20VDC), + PoE to AI Bridge |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
Physical Specifications
| Weight | 475g / 1.0lbs |
| Dimensions | 190mm × 150mm × 55mm / 7.4″ × 5.9″ × 2.1″ |
Communication
| Communication Interfaces | TCP/IP, Wireless RF |
| Maximum Sensors | Up to 30 sensors (Subnet Mode), up to 256 sensors (Flat Mode) |
| Alarm Output Options | TCP/IP |
Environmental & Power
| IP Rating | IP67 |
| Power Supply | 12V |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
Physical Specifications
| Weight | 260g / 0.57lb |
| Dimensions | 135mm × 87mm × 82mm / 5.3″ × 3.4″ × 3.2″ |
Communication
| Communication Interfaces | GSM, Wireless RF |
| Maximum Sensors | Up to 30 sensors (Subnet Mode), up to 256 sensors (Flat Mode) |
| Alarm Output Options | GSM |
Environmental & Power
| IP Rating | IP67 |
| Power Consumption | 23mA (Always On), 5mA (Sleep Mode) |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
Physical Specifications
| Weight | 260g / 0.57lb |
| Dimensions | 135mm × 87mm × 82mm / 5.3″ × 3.4″ × 3.2″ |
Communication
| Communication Interfaces | Satellite, Wireless RF |
| Maximum Sensors | Up to 30 sensors (Subnet Mode), up to 256 sensors (Flat Mode) |
| Alarm Output Options | Satellite |
Environmental & Power
| IP Rating | IP67 |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F |
Physical Specifications
| Weight | 260g / 0.57lb |
| Dimensions | 135mm × 87mm × 82mm / 5.3″ × 3.4″ × 3.2″ |
Frequently Asked Questions
Have questions about our UGS sensors? Browse through our frequently asked questions to learn more about installation, configuration, and testing.
What are the main components of the AIO X/XR sensor?
The AIO X/XR sensor includes a top part with a battery pack and DSP processor, a bottom part with the sensing element and cable, and a spike for installation.

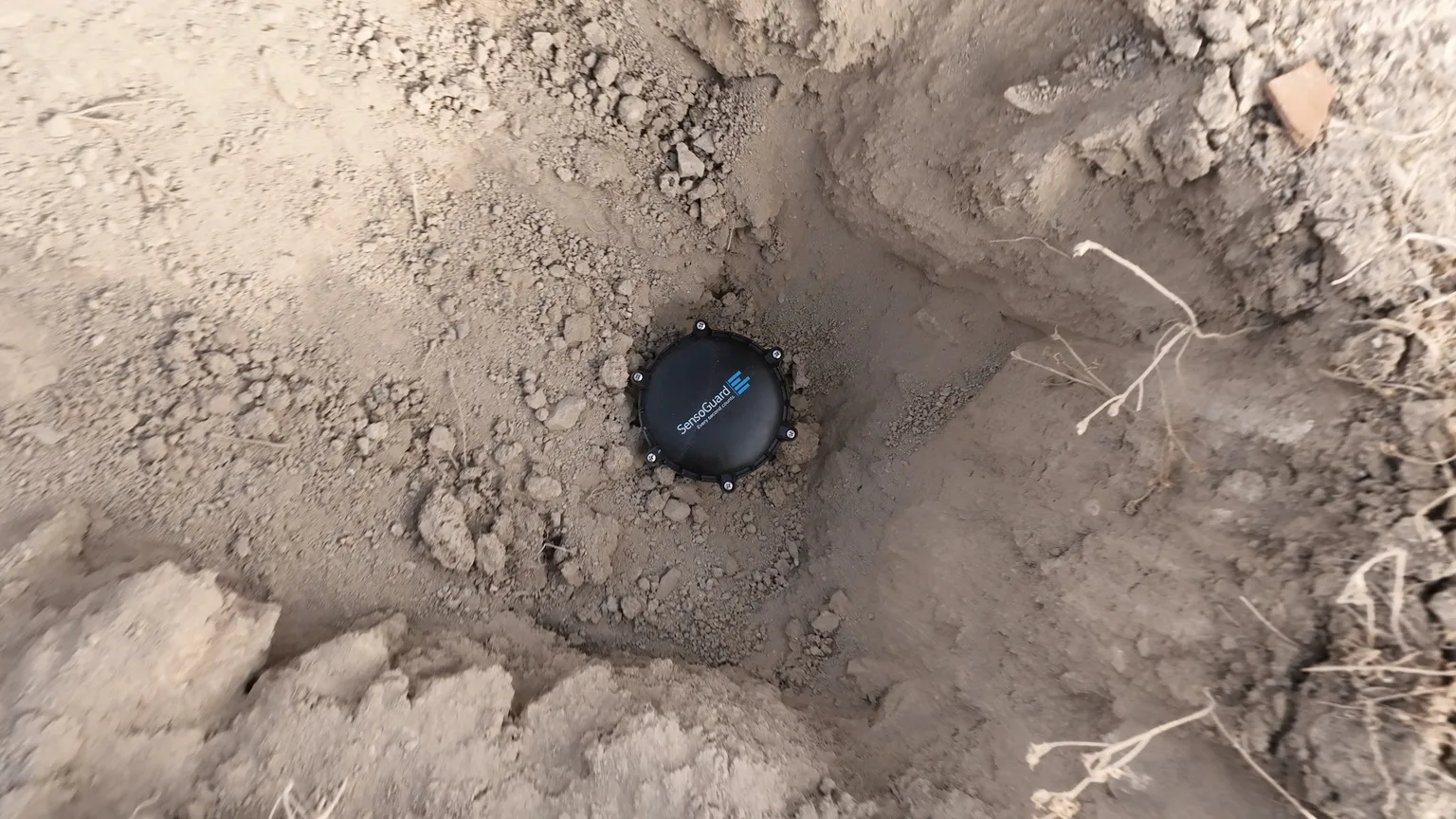

How do I install the AIO X/XR sensor?
Dig a hole, place the sensor ensuring it's tightly connected to the ground and straight, activate it by connecting the battery power connector, and cover it with soil without stones.
How do I first operate the AIO X/XR sensor?
Connect the battery pack by opening the top cover and connecting the battery connector, then close the screws firmly to prevent water ingress. Configure the sensor ID and subnet as required.
How can I configure the AIO X/XR sensor?
Sensors are configured via PC Suite. Connect the sensor to your device, launch PC Suite, and follow the instructions for sensor configuration.
How do I test the AIO X/XR sensor?
Test both in-office and in-field by triggering the sensor and confirming the alarm is received, adjusting sensitivity settings as needed for accurate detection.
